ED208H65 2u 8bays hot swap server chassis computer chassis rack server chassis with 12GB

FOB Reference Price:Get Latest Price
US $99-139 / Pieces | 1 Piece/Pieces (Min. Order)
Color:
Model Number:
ED208H65
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Server
Type:
Rack
Form Factor:
ATX
Material:
Plastic, Steel, SGCC 1.2mm
Style:
With Fan
Front Ports:
USB, Other
Brand Name:
EDNSE
Place of Origin:
Guangdong, China (Mainland)
Size Diemension:
650x430x88mm,25.6"x16.9"x3.5"
M/B support:
(12"x13")(12"x10.5")(12"x9.6")(9.6"x9.6")(6.7"x6.7")
PSU support:
1U or 2U single standard/ATX single psu/1U or 2U redundant 1+1 PSU
Customized Items:
logo,and others
sheet metal thickness:
1.2mm
plastic material type:
ABS
drive bays:
8x3.5"HDD,2x2.5"HDD,1xCD-ROM
backplane:
of sata or minisas ports,support sata or mini sas HDDs
system cooling:
middle 4x8025 PWM cooling fan
Supply Ability
Supply Ability:
500 Set/Sets per Week
Packaging & Delivery
Packaging Details
normal exporting packing carton with EVA foam stuffed
Port
Shenzhen/HK
Lead Time :
Quantity(Pieces) 1 - 50 51 - 1000 >1000
Est. Time(day) 7 30 To be negotiated



ED208H65 2u 8bays hot swap server chassis computer chassis rack server chassis with 12GB



 ED208H series : 480mm depth,550mm depth,650mm depth.



 model ED208H48 :depth 480mm.

 model ED208H55:depth 550mm.

 model ED208H65:depth 550mm.



 difference:

 1.main board support

 depth:480mm,support mainboard:(6.7"x6.7")

 depth:550mm,support main board:(12"x9.6")(9.6"x9.6")(6.7"x6.7")

 depth:60mm,support main board:(12"x13")(12"x10.5")(12"x9.6")(9.6"x9.6")(6.7"x6.7")

 2.PSU support

 depth:480mm,ATX single psu

 depth:550mm,1U or 2U single standard PSU/ATX single psu

 depth:650mm,1U or 2U single standard PSU/ATX single psu/1U or 2U redundant 1+1 PSU



the others is the same.





Product Description



ED208H Series- Model ED208H65

Order model

ED208H65

Material

metal material:SGCC,thickness:1.2mm,other:ABS

M/B support

(12"x13")(12"x10.5")(12"x9.6")(9.6"x9.6")(6.7"x6.7")

PSU support

1U or 2U single standard/ATX single psu/1U or 2U redundant 1+1 PSU

Processor Support

DP Xeon(Intel),DP Opteron(AMD),Core(Intel)

Dimensions

 L x W x H 650x430x88mm,25.6"x16.9"x3.5"

Drive Bays

External: front Hot-swap 8x3.5"HDD, 1xSlim-DVD;internal:front 2x2.5"HDD

Backplane

Backplane with sata or minisas ports x2,support SATA or SAS hard disk.

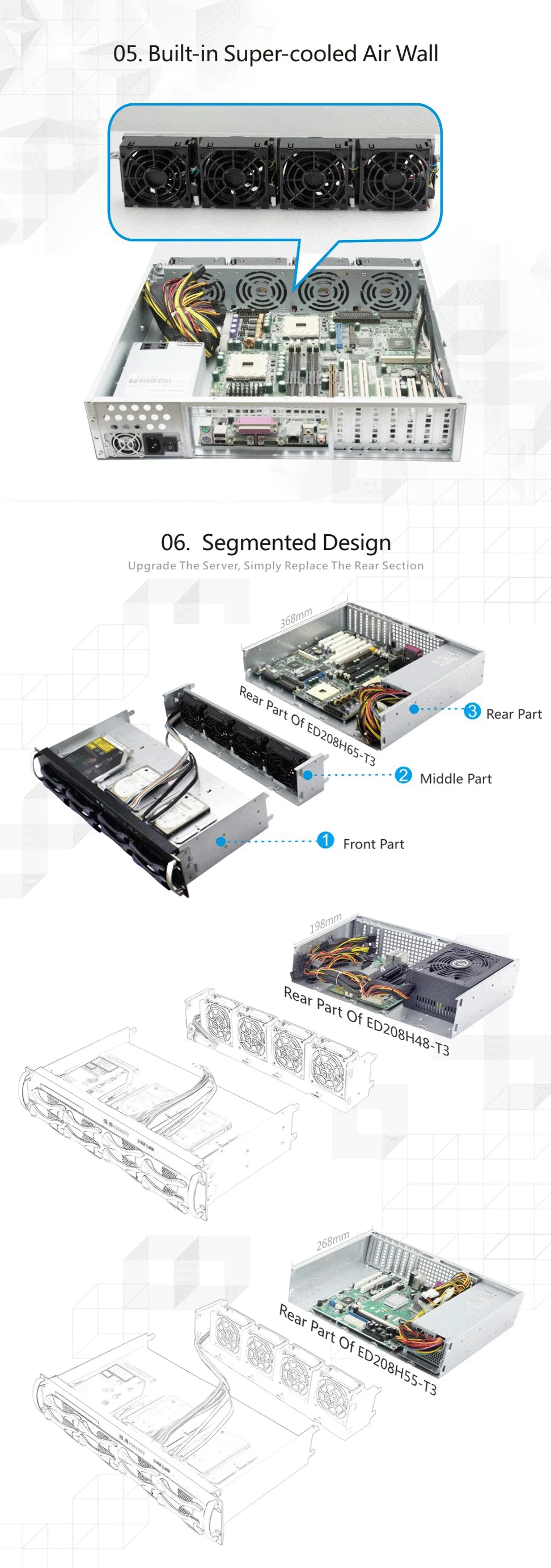

System Cooling

Middle 4 x 8025 mm PWN

expansion slot

vertical type x7 ,vertical type x4(ATX) or horizontal type x3

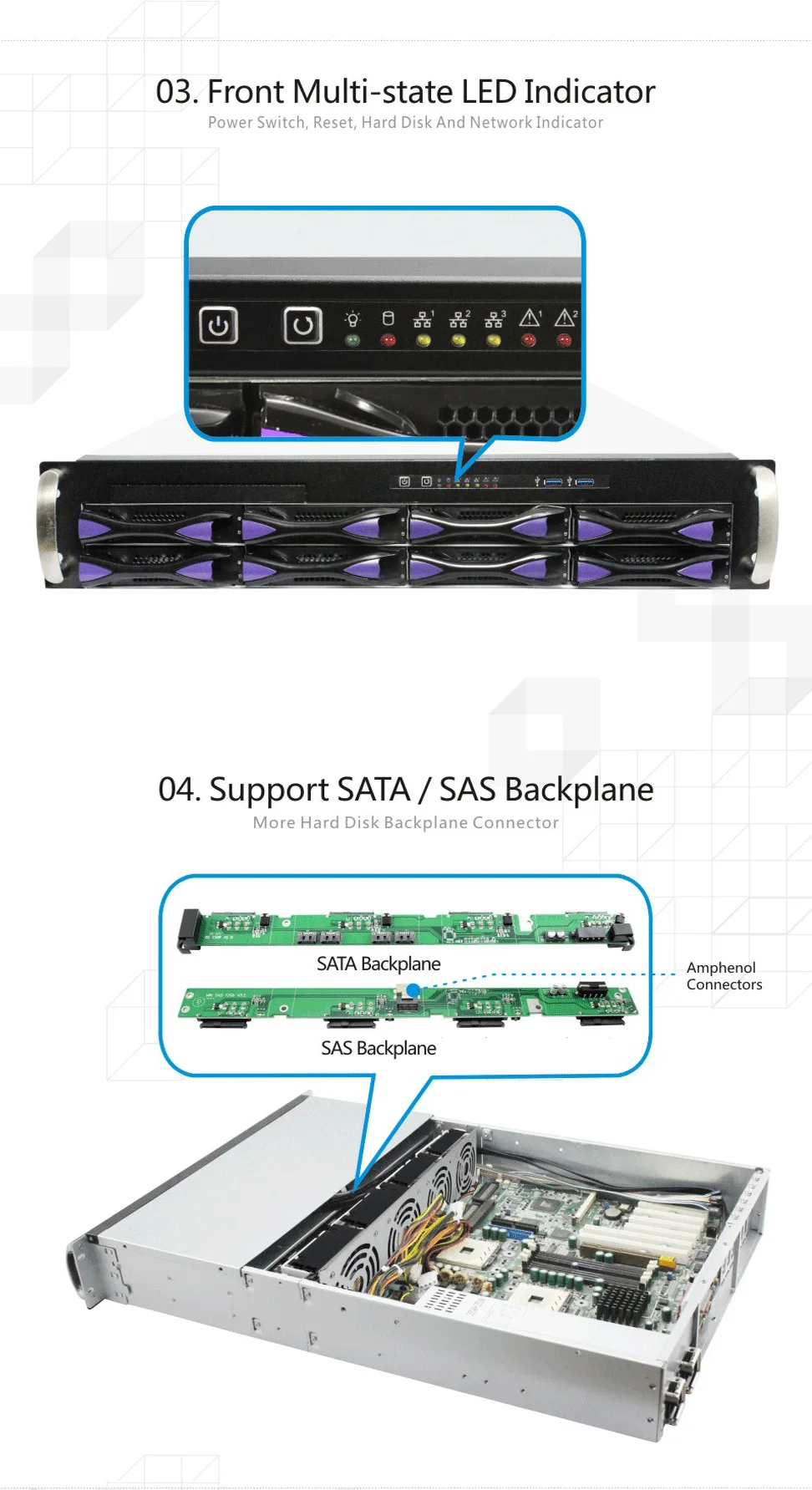

front pannel

front control:power on/off,system reset,indicator:power LED,HDD Activity LED,LAN Activity LED,Failure LED

indicator light :power(x1),HDD(x1),LAN NIC(x3),ALARM(x2)

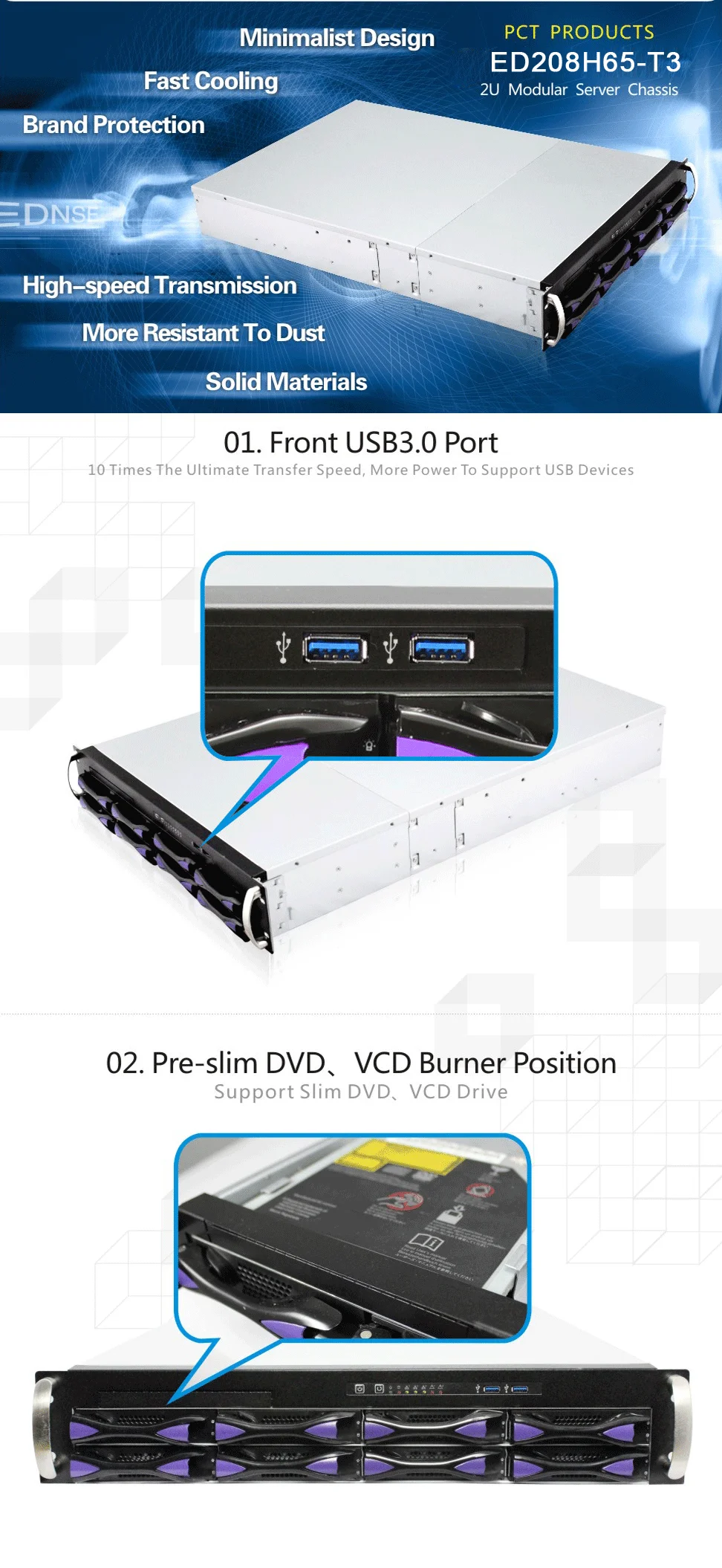

USB: 3.0 x2

Rear window

compatible with PSU(one of the three or according to customer needs)

Weight

N.W:10.3kg  G.W:12kg(single carton) +1.5(double carton)

carton size

830mm(L)x550mm(W)x110mm(H)

Packing contain

chassis x1

backplane x2

fan x4

display&switch&USB cables x1

parts pack x1

others

3 types for choice (choose one of the three)




Purchase Notes



 11.two types of backplane for choice,mini sas backplane or sata backplane.1..png





2.making rear window according to your need.

we make rear window which is compatible with 1U Flex PSU/1U single standard PSU / 1U redundant 1+1 PSU

(one type according to your needs)

 below photo for your reference:


3. about HDD tray ,we have 3 types.but usually to type A:


Packaging & Shipping


Our Services

 .png

We have 6 types of business modes,
1,servers case + power + other parts
2, server case + power + motherboards + other parts
3,server case + power + motherboards + OS + other parts
4,whole server + OS
5, whole server + OS + cabinet +KVM + PDU + UPS + Cool air
6, Whole data center

We can also provide OEM/ODM products,
if you have any customized requirements,
we'll try our best to find a suitable solution for you!



Company Information



DENESE was founded in 2005. Now it is located in international electronics manufacturing city of Dongguan which is including advanced information technology and the facilitated transportation .

EDNSE is the strategy brand in DENESE Group.

As a manufacturer which specializes in server system equipment,we input series of system equipments to the field of servers for 8 years.Especially,the rack-mount chassis have reached the most advanced level in China.

Our company mainly engage in the rack-mount chassis e.g. 1U,2U,3U,4U,6U,blade architecture,ITX and tower chassis.We also operate server related products such as RAID card,expansion card,network storage, KVM,cooling fan,power supply,riser card,HDD support,HDD bracket,CPU cooler and so on.In

addition,our company provide hot-swappable and non-hot-swappable solution.We design,customize and produce products base on the needs of clients.(ODM/OEM)

Our products are exported to Southeast Asia,Europe,North America,Middle East,the world’s more than 40 countries and regions.

Our goal is creating the new future by science and technology.Innovation and renovation is our soul .We strive to crate more human,convenient and fast, intelligent products which we focus on providing the best customer experience.Our products will set up strong data information center for you.You will build a better future with our service.
